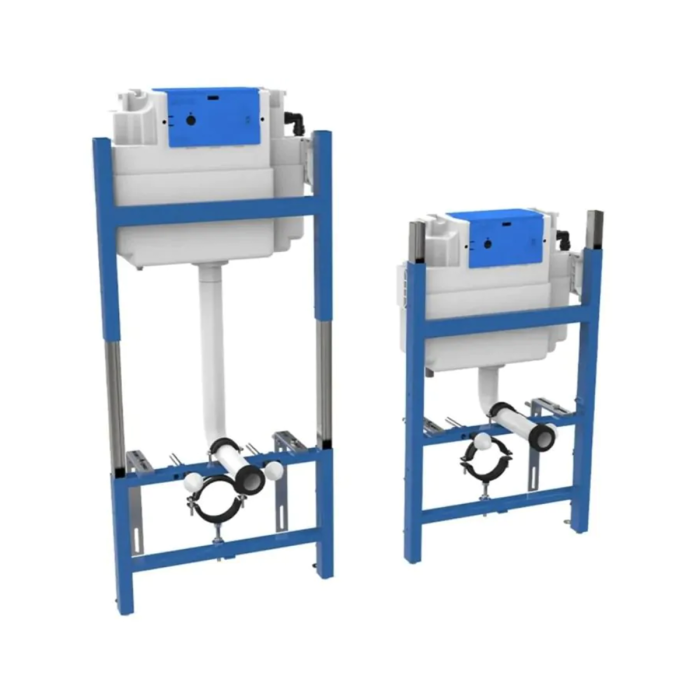

Thomas Dudley Illusion Wall Hung Toilet Frame with cistern
Height adjustable wall-hung WC pan support frame designed for use against flat walls and in corners.
The Dudley Illusion range of support frames are ideal for use with most wall-hung sanitaryware. They also provide a proven solution behind panelling and tiles and in fitted bathroom furniture. Illusion A and V frames incorporate an integral Vantage cistern that can be quickly and easily converted to deliver factory set to 6/4L convertible to 5/3 or 4/2.6L dualflush to support BREEAM and other initiatives
30 days free credit with
Buy Now, Pay Later, options at checkout
Illusion Universal, Compact Universal and Freestanda frames can be installed in conjunction with any Dudley concealed cistern to provide a bespoke water saving solution. Wall hung WC pan support frame designed for use against flat walls and in corners. Ideal for most domestic and commercial applications.
The Dudley Illusion range of support frames are ideal for use with most wall-hung sanitaryware. They also provide a proven solution behind panelling and tiles and in fitted bathroom furniture. Illusion A and V frames incorporate an integral Vantage cistern that can be quickly and easily converted to deliver factory set to 6/4L convertible to 5/3 or 4/2.6L dualflush to support BREEAM and other initiatives.
Features
Illusion Universal, Compact Universal and Freestanda frames can be installed in conjunction with any Dudley concealed cistern to provide a bespoke water saving solution. Wall hung WC pan support frame designed for use against flat walls and in corners. Ideal for most domestic and commercial applications.
- Unique design enables frame to be set between 825mm and 1120mm for unrivalled installation flexibility
- Height adjustable
- Legs adjust to offer WC pan height fixing flexibility
- Wall and floor fixing brackets can be fixed through 180 Degrees and 360 Degrees respectively to provide further flexibility
- Load tested to 4kN to ensure compliance with BS EN 997 when fitted with a wall-hung pan
- Strong steel square hollow construction
- Blue powder coated finish and zinc plated wall and floor brackets
- Flushbend and WC pan connector clamps
- Integral factory fitted Dudley Vantage cistern
- 5L & 4L mono flush is achievable
- A polystyrene cistern insulation jacket is available
- Category 3 and Category 5 cisterns available
- Can be supplied with a wide range of pushbuttons, plates and electronic sensors
- The Illusion A frame can also be supplied with an integral Phantom, lever operated cistern
Does not include Button, Plate or Jacket.
