RADAR Disabled Door Lockset In Polished Aluminium

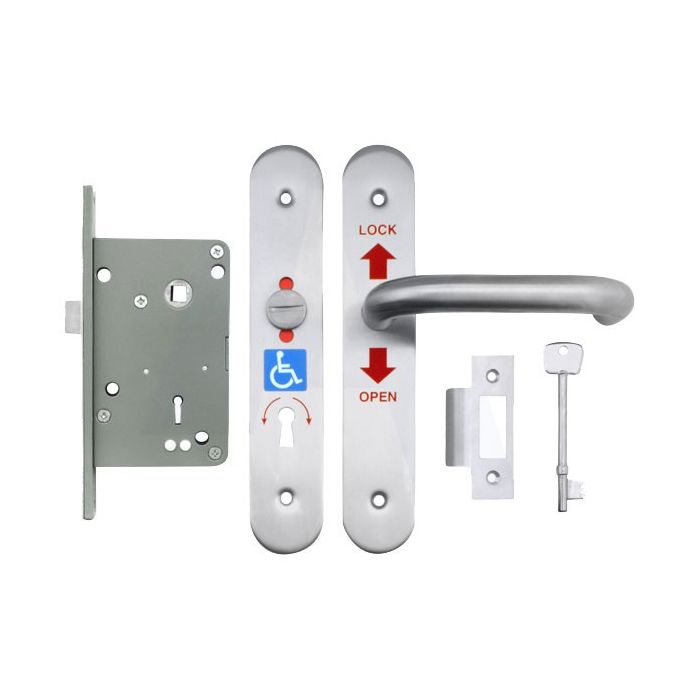

The RADAR lockset consists of a 6 lever mortice lock in polished aluminium, with an external red/white indicator and an emergency access coin release. The lock comes in either a left or right-hand configuration.
The door is opened from the outside by use of the RADAR key when the cubicle is unoccupied. Once the user is inside the cubicle the door is locked by lifting the lever upwards, which also activates the external occupied indicator.
The National Key Scheme (NKS) offers disabled people independent access to locked public toilets around the country.
30 days free credit with
Buy Now, Pay Later, options at checkout
The RADAR lockset consists of a 6 lever mortice lock in polished aluminium, with an external red/white indicator and an emergency access coin release. The lock comes in either a left or right-hand configuration.
The door is opened from the outside by use of the RADAR key when the cubicle is unoccupied. Once the user is inside the cubicle the door is locked by lifting the lever upwards, which also activates the external occupied indicator.
To exit the cubicle, the lever is pushed down, allowing the door to open and changing the indicator to white. Please note, when occupied (indicator shows red) door cannot be opened from outside by RADAR key.
The National Key Scheme (NKS) offers disabled people independent access to locked public toilets around the country.
This lock is approved by the Royal Association for Disability and Rehabilitation (RADAR), which means that a toilet can be locked at all times unless opened by a registered disabled or blind user with their RADAR key. This means that the toilet area can be kept clean and the limited access helps prevent misuse and vandalism, enabling a clean functional toilet.
The handing can be determined by standing inside the cubicle and finding which side of the door the hinges are hung on. If the hinges are on the right, then the lock is left-handed. If the hinges are on the left, then the lock is right-handed.
The lever handle should be fitted 800 - 1050 mm above the floor level (recommended height 900mm).
All locks are supplied with one (1) bow-shaped handle key and fixings.
-
What is the RADAR toilet lock scheme? The RADAR key scheme is a nationally recognised scheme that was developed to provide access to disabled toilets via a key. Our guide explains more. -
What are the dimensions of a disabled toilet room? Wheelchair users should be able to approach, transfer to and use the sanitary facilities provided within a building. This requires the provision of a wheelchair-accessible unisex toilet. The following article explores the dimensions required according to Doc M of the UK building regulations. -
What are RADAR Locks? If you’re concerned about misuse in your disabled washrooms, then RADAR locks can make sure that only those who require these facilities can access them… -
Why Are Disabled Toilets Locked? Many disabled toilets in the UK are locked, we reveal why and give insight into disabled toilet protection… -
Disabled Toilet Keys Disabled toilet keys are a subject that many members of the public do not think about, but for some people with mobility issues or hidden disabilities, it is a vital part of their daily life.
