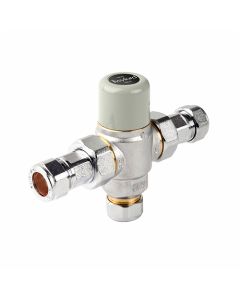

Rada Meynell thermal mixing valve (TMV) valve for installation with commercial taps and showers to ensure a consistent and safe supply of warm water.
Supplied complete with a white plastic outer casing and integral check valves and strainers.
30 days free credit with
Buy Now, Pay Later, options at checkout
Rada Meynell thermal mixing valve (TMV) valve for installation with commercial taps and showers to ensure a consistent and safe supply of warm water.
Supplied complete with a white plastic outer casing and integral check valves and strainers.
Features:
- Suitable for under-basin installation
- Safe thermostatic shutdown in less than 3 seconds
- Supplied in a white easy clean casing
- Complete with integral check valves and strainers
- Tamper-proof temperature adjustment
- Includes check valves and strainers
Temperature Range:
- Factory pre-set maximum outlet temperature: 42°C.
- The minimum temperature differential between the hot inlet and preset outlet temperature: 10°C.
- Optimum temperature control range: 35 °C - 45 °C.
- Maximum hot water temperature: 85 °C (for safety reasons it is recommended that the hot water storage temperature is maintained at between 60°C to 65°C in ablutionary applications).
Pressures:
- Minimum operating pressure: 0.1 bar.
- Maximum static pressure: 10 bar.
- Maximum pressure loss ratio: 10:1 (in favour of either supply).
- Maximum hot water supply temperature: 85°C.
- Maximum cold water supply temperature: 25°C.
- Note! Both hot and cold pressure should be nominally equal.
