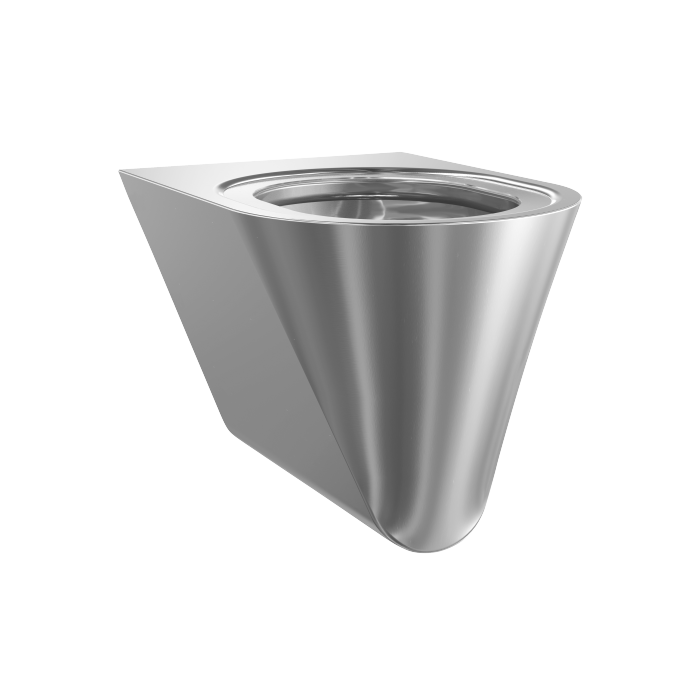

KWC DVS Campus Wall Hung Stainless Steel Toilet

Wall Hung stainless steel toilet pan manufactured by KWC DVS and ideally suited to vandal-prone environments, particularly schools.

The toilet is designed as a wall hung pan to be fitted off the floor and through a service wall or IPS duct panel set to conceal cistern and pipework. Mounting is achieved with 280mm stainless steel rods fixed through a wall with screw nuts supplied.

Please note, an installation frame (CMPX140 + AQUA557) or similar support bracket can be used to support the weight of the toilet pan and a person (cistern included with frame). Alternatively, a separate concealed cistern can be included.

Manufactured from grade 1.4301 (304) stainless steel with a material thickness of 1.6mm for the pan and shroud. The toilet pan comes in a satin polish finish and incorporates a stainless steel P trap (102mm o/d).

The Campus toilet pan has a choice of seats:

• HDTX592 Pressed seating area that does not require a separate seat, ideal for vandal prone installations.
• HDTX592S With Seat Pads
• HDTX592B With Black seat and lid

Price displayed is for toilet pan only. Most concealed cisterns can be used with this toilet pan.

Approvals:

• Complies with BS EN 997 for 4.5 litre flushing
• Complies with the Australian and German test standards
• CE Certified

Features:

• 4 litre flush EN997 approved. Products can be foam filled, on request, for extra strength and reduction of noise in a security environment (additional costs may apply)
• Gross weight: 15.90 kg
• Material: Stainless steel
• Material code: 1.4301 Chrome Nickel steel V2A
• Net weight: 13.74 kg
• Overall Depth: 500.00 mm
• Overall height: 351.00 mm
• Overall width: 360.00 mm
• Type of mounting: bolt fix with duct wall
• Outlet size: DN 100
• Inlet size: DN 55
• Minimum flushing capacity: 4.00 L

A back to wall version of this stainless steel toilet is also available.
