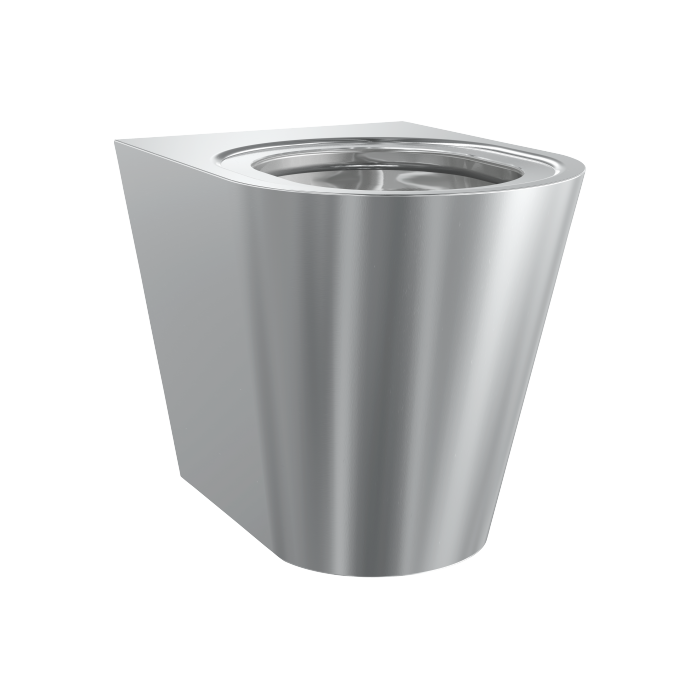

KWC DVS Campus Back to Wall Stainless Steel Toilet
Back to wall stainless steel toilet pan manufactured by KWC DVS and ideally suited to vandal prone environments, particularly schools.
This toilet is designed as a floor standing pan to be fixed through a service wall or IPS duct panel set to conceal cistern and pipe work. Manufactured from grade 1.4301 (304) stainless steel with a material thickness of 1.5mm for the pan and shroud. The toilet pan comes in a satin polish finish and incorporates a stainless-steel P trap (102mm overall diameter).
30 days free credit with
Buy Now, Pay Later, options at checkout
Back to wall stainless steel toilet pan manufactured by KWC DVS and ideally suited to vandal-prone environments, particularly schools.
This toilet is designed as a floor standing pan to be fixed through a service wall or IPS duct panel set to conceal cistern and pipework. Manufactured from grade 1.4301 (304) stainless steel with a material thickness of 1.5mm for the pan and shroud. The toilet pan comes in a satin polish finish and incorporates a stainless-steel P trap (102mm overall diameter).
A separate mounting plate and 4 bolts are provided for mounting the WC through a duct wall. The Campus toilet pan has a choice of seats:
- HDTX597 Pressed seating area that does not require a separate seat, ideal for vandal prone installations
- HDTX597S With Seat Pads
- HDTX597B With Black seat and lid
Price displayed is for toilet pan only. Most concealed cisterns can be used with this toilet pan.
Approvals:
- Complies with BS EN 997 for 4.5 litre flushing
- Complies with the Australian and German test standards
- CE Certified
Features:
- 4 litre flush EN997 approved. Products can be foam filled, on request, for extra strength and reduction of noise in a security environment (additional costs may apply)
- Gross weight: 22.20 kg
- Material: Stainless steel
- Material code: 1.4301 Chrome Nickel steel V2A
- Net weight:19.90 kg
- Overall depth: 500.00 mm
- Overall height: 400.00 mm
- Overall width: 360.00 mm
- Type of mounting: bolt fix with duct wall
- Outlet size: DN 100
- Inlet size: DN 55
- Minimum flushing capacity: 4.00 L
A wall hung version of this stainless steel toilet is also available.
