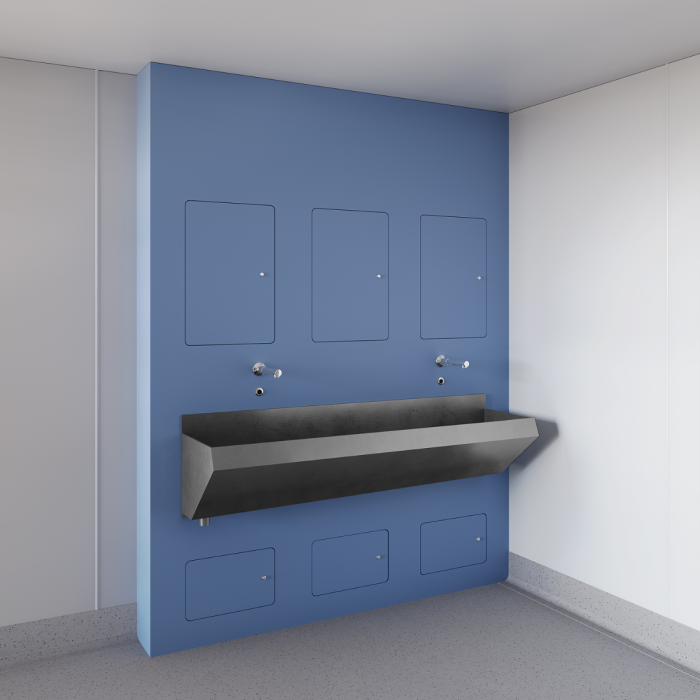

Healthcare Clinical Surgeon Scrub Up Duct Module
This neat pre-plumbed Surgeon Scrub-up Duct Module is ideal for use within a healthcare and clinical setting. It is made to measure and is offered between walls (no return ends), with one end closed or as a boxed-out unit with two return ends.
At the heart of each fully adjustable module is a self-supporting 16 gauge galvanised steel frame which can be securely fixed to floor, walls, and ceiling.
30 days free credit with
Buy Now, Pay Later, options at checkout
This neat pre-plumbed Surgeon Scrub-up Duct Module is ideal for use within a healthcare and clinical setting. It is made to measure and is offered between walls (no return ends), with one end closed or as a boxed-out unit with two return ends.
At the heart of each fully adjustable module is a self-supporting 16 gauge galvanised steel frame, which can be securely fixed to the floor, walls, and ceiling.
IPS Pre-plumbed Clinical Surgeon Scrub Up Duct Module (2 tap station) includes:
- IPS Panel and metal frame set
- Hinged and lockable access panel
- S2873 (SU H) Firth 160cm scrub-up trough, left-hand outlet strainer waste, trap cover and hangers
- S8925 (TRR2/P) Trap 1½" plastic resealing bottle with 75mm seal, multi-purpose outlet
- AT02-012 Aquarius WM straight tap spout – copper tails – (x2)
- AT00-003 Two station mains kit
- Isolating valve
- Y-strainer
- TMV
Infection control:
- Sanitised antibacterial solid grade laminate panels
- Abuse resistant
- Impervious to water
- Resistant to suitable cleaning chemicals
- Close fitting panels to minimise edge surfaces
Construction:
- Steel wall and floor fixing channels
- Sanitised antibacterial SGL panels
- Pivoting and lockable access panels
- Post formed SGL vertical panelling
- Suitable for heavy use and wet environments
Sanitaryware and Brassware: Units can be manufactured in our factory as an Integrated Plumbing System (IPS), delivered to site with sanitary ware pre-fixed and installed from the factory. Alternatively, sanitary ware and brassware Compliant with HTM 64 can be ordered separately from the Commercial Washrooms site.
Dimensions: 2000mm wide x 2600mm high x 200mm deep
