This stainless steel glass cubicle headrail has a sleek design, and can be used to support shower or toilet cubicles along with the other attachments available.
It is manufactured from SSS 316 - a higher grade of stainless steel for improved corrosion resistance, making it ideal for shower cubicles.

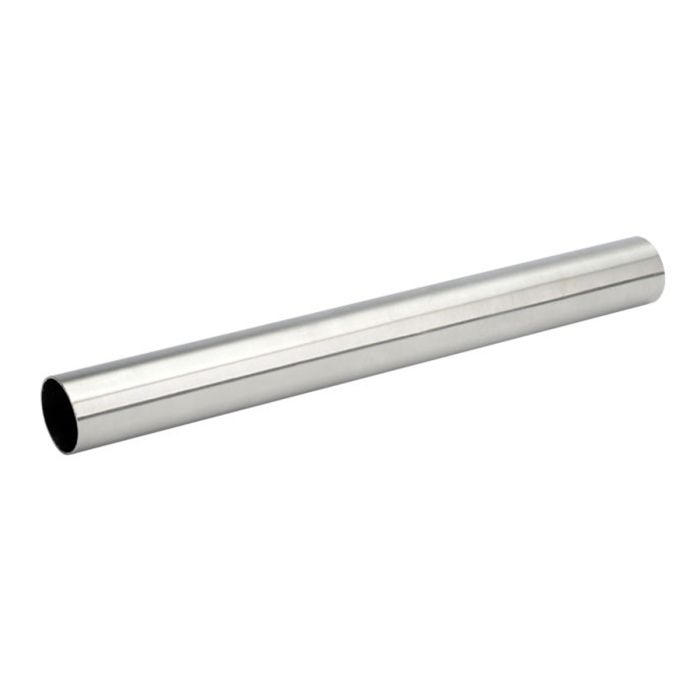

![main product photo](https://www.commercialwashroomsltd.co.uk/media/catalog/product/cache/a339618b11419d5af9b68b7f8a902a13/t/9/t900sm-glass_cubicle_headrail_1.jpg)
This stainless steel glass cubicle headrail has a sleek design, and can be used to support shower or toilet cubicles along with the other attachments available.
It is manufactured from SSS 316 - a higher grade of stainless steel for improved corrosion resistance, making it ideal for shower cubicles.
To attach the headrail to the cubicle, you will need a Headrail Fixing Clamp. This clamp slides over the headrail, and enables fixing of 10mm glass partition panels or 12-13mm board partitions to the overhanging cubicle headrail.
To connect multiple headrails together in different directions, such in between two cubicles, you will need a Headrail T-Section Joint. This nylon and stainless steel joint enables the secure connection of a tubular headrail to a support post at a right angle.
To bend the headrail on a corner, you will need a Headrail Corner Joint. This stainless steel joint enables the connection of tubular headrails to allow a 90 degree turn around a cubicle and back towards the wall.
Fitting instructions can be found in the downloads section.
Key features:
- Length: 3m
- Diameter: 32 mm
- Finish: SSS 316 Permalast Steel
- Suitable for 10mm glass and 13mm board
- Comes supplied with all fixings needed
To retain the highest corrosion resistance it is necessary to keep the surface of stainless steel clean. This can be done by wiping with a warm clean cloth using either a mild detergent or soap, then rinsing with warm clean water and drying with a towel. Carbon steel brushes or wire wool should not be used. Comprehensive instructions are available upon request.
Please Note: This product can only be sent to commercial/site addresses (not residential). Please enter an appropriate delivery address when ordering.
Product codes:
- T900SM - Glass Cubicle Headrail
- T900SM/F1 - Headrail Fixing Clamp
- T900SM/F4 - Headrail T-Section Joint
- T900SM/F3 - Headrail Corner Joint
