The Commercial Washrooms exposed trap urinal Integrated Plumbing Systems (IPS) offers a complete solution for projects where concealed plumbing is required. Manufactured to either full or half room height (including a lid to conceal the top of the unit), our pre-plumbed IPS is made to measure and delivered to the site as a factory-assembled unit for fast installation.
Choose from a panel finish in either melamine-faced chipboard (MFC), High-Pressure Laminates (HPL) or Solid Grade Laminates (SGL).
![Two Inc](https://www.commercialwashroomsltd.co.uk/static/version1725271788/frontend/Medialounge/commercialwashrooms/en_GB/images/two-inc.png)
30 days free credit with
Buy Now, Pay Later, options at checkout

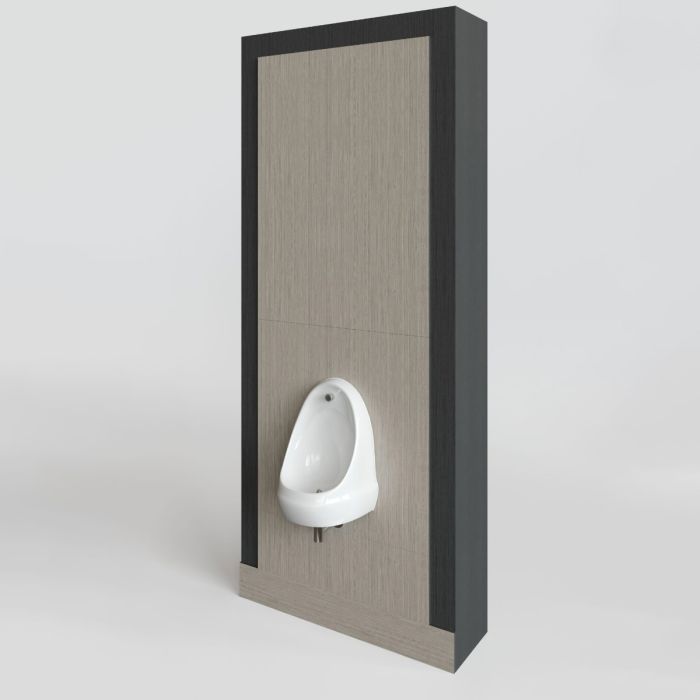

![main product photo](https://www.commercialwashroomsltd.co.uk/media/catalog/product/cache/a339618b11419d5af9b68b7f8a902a13/e/x/expipsuri-exposed_trap_urinal_ips.jpg)
The Commercial Washrooms exposed trap urinal Integrated Plumbing Systems (IPS) offers a complete solution for projects where concealed plumbing is required. Manufactured to either full or half room height (includes a lid to conceal the top of the unit), our pre-plumbed IPS is made to measure and delivered to site as a factory-assembled unit for fast installation.
Choose from a panel finish in either melamine-faced chipboard (MFC), High-Pressure Laminates (HPL) or solid-grade laminates (SGL). Colours are from our standard Polyrey colour range (PDFs attached).
The systems are available to suit half or full-room heights (up to 2400mm). They are manufactured to order and can, therefore, suit site-specific measurements and bespoke room sizes.
The IPS pre-plumbed manufactured module includes a self-supporting frame, plumbing, sanitary ware, supply and soil connections and all fixings. On-site, the modules are lightweight and easy to handle, making installation even quicker.
With a simple five-step installation, it is easy to specify and install and can save up to 20% in cost when compared to traditional methods, while at the same time saving valuable time on site.
The IPS pre-plumbed manufactured module includes a self-supporting frame, plumbing, sanitary ware, supply and soil connections and all fixings. On-site the modules are lightweight and easy to handle, making installation even quicker.
To complete the job, a qualified plumber can make the final connection between the water supply and soil pipework to the pre-plumbed cistern and sanitary ware. These will be fitted by trained washroom installers and commissioned by qualified plumbing contractors.
An additional delivery charge will apply, depending on site location. See the attached location map for guidance.
The Exposed Trap Urinal Module pack includes:
- Standard IPS metal frame and panel set.
- Olympus white urinal bowl.
- Chrome-plated urinal spreader.
- Chrome plated 40mm bottle trap.
- 4.5-litre auto cistern (shared).
- All necessary pipes, fittings, and fixtures.
Not included: First Fix Plumbing pipework.
Sensor control units and water management systems can result in substantial savings in water consumption and are available within these units on request.
