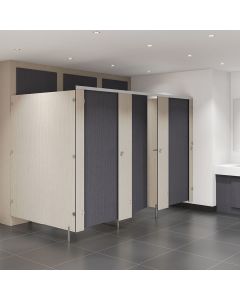

Executive MFC Toilet Cubicle Range

Executive MFC toilet cubicles represent our standard range toilet cubicle system, particularly suited to office and general commercial washroom environments where low to mid-use exists. Executive is made to measure and is suitable for dry area application only.

All cubicle doors, pilasters, and panels are manufactured from 18mm thick Melamine Faced Chipboard (MFC) grade board as standard with a moisture-resistant core and high impact resistant melamine facing. Panel edges are finished with 2mm PVC trim.

Executive cubicles are available in a wide range of colours and are therefore a popular alternative to the limited colours available in our Fast Delivery Cubicles ranges.

The toilet cubicle fittings come in a satin anodised aluminium (SAA) finish as standard.

System options include toilet cubicles/partitions, IPS (integrated plumbing system) duct panelling, vanity units, light pelmets, etc. Alternative colour ranges are available on request.

The toilet cubicle prices displayed incorporate the common washroom layouts. Between walls assumes two solid walls on either side of the cubicle run, and wall angle assumes the run of cubicles will be installed against one solid side wall.

Executive Toilet Cubicle Colours:

An attractive range of colours is available. Please see the attached colour chart. Other laminate finishes are available at an increased cost. Availability is only in the MFC-indicated options.

Toilet Cubicle Installation:

All toilet cubicle ranges displayed on the Commercial Washrooms website are straightforward to install for any competent tradesman. However, we can help those needing a full supply and installation service. Please contact the team for full details.

For a full quotation, please contact us with your room(s) layout.

Materials Specification:

Doors: 18mm moisture resistant Melamine Faced Chipboard (MFC) with 2mm charcoal colour, high impact ABS edging

Partitions: 18mm moisture-resistant Melamine Faced Chipboard (MFC) with 2mm charcoal colour, high impact ABS edging

Pilasters: 18mm moisture resistant Melamine Faced Chipboard (MFC) with 2mm charcoal colour, high impact ABS edging

Hardware: Satin Anodised Aluminium (SAA) fittings – Headrail, pilaster brackets, wall brackets, adjustable leg, Pilaster lock, and hinges.

Dimensions Guide:

• Overall Cubicle Height: 2000mm including 150mm adjustable leg clearance
• Partition Square Height: 1800mm
• Partition Depth: Price displayed is for panel depths up to 1500mm
• Pilaster Height: 1850mm
• Centre Pilaster Width:  230mm
• Door Width: Made to measure
• Door Height: 1800mm
• End/Wall Pilaster Width: 115mm
