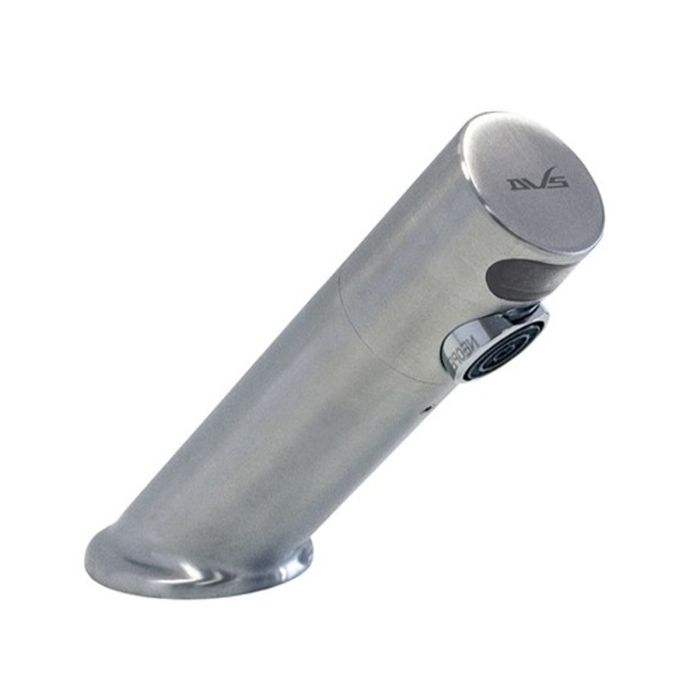

DVS A45 Aquarius Doc M, Disabled Sensor Tap

The Dart Valley Systems (DVS) Aquarius A45 DOC M tap has been designed to suit DOC M and disabled sinks and is also ideal for most extra small basins. Supplied in a brushed finish as standard, but also available in polished finish, it is slightly shorter than the standard A45 tap from DVS.

The Aquarius has a simple design which ensures the ultimate in hygiene and aesthetics for the most discerning of clients. The robust design and build quality also make it ideal for heavy industrial and general commercial applications.

When a user puts their hands under the tap the infra-red detector activates the solenoid valve, causing it to open. The valve remains open while the user’s hands are under the tap allowing them to wash their hands thoroughly. Once the user removes their hands the sensor activates the solenoid valve to close and the water flow is stopped.

The DVS A45 is manufactured from stainless steel, with a solid 38mm stainless steel ingot for the head assembly. Choose from either a brushed or polished finish. Supplied with pex tails as standard; copper tails also available (predominantly used within healthcare settings).

Power options include both battery and mains electrical supply. Mains power kits can be purchased for 1 station, 2 station or 3 station scenarios (taps must be adjacent to each other). Battery kits are only available to suit 1 tap.

Also, choose from standard OR low-pressure arrangement. Standard pressure set up assumes 1-6 bar; low-pressure kits available to suit 0-1 bar.

A45 taps can be pre-set prior to delivery or adjusted on-site using a handheld controller (additional cost). All taps feature a chlorination option for new installations or where flushing is required and a built-in purge facility, ideal for areas where water condition is critical. A number of helpful reporting features can also be accessed via the hand-held controller (sold separately), including the number of tap operations and purges which have occurred.

All electronics are housed within the body of the tap. A separate solenoid valve controls the flow of water and is connected to the tap using secure IP65 rated connection cables. The power supply or battery pack is also connected in the same way.

All Aquarius sensor taps have an anti-vandal mode ensuring that if someone deliberately blocks the sensor, the tap will only run for one minute. The sensor will then lock off until the sensor has been cleared and the tap then resets, preventing water wastage and the risk of overflow or flood.

Features:

• 2 Year Manufacturer’s Warranty *
• WRAS Approved Product
• Fully Programmable with adjustable run-on time and anti-Vandal Lockout Time
• Extensively developed and tested to achieve the current high levels of reliability
• Uses the “optimum” amount of water
• Hygienic - Helps avoid cross infection
• Easy to use - Ideal for disabled, elderly or young children
• Battery or mains powered
• Easy to install and maintain
• Available in brushed stainless steel (BSS) or polished finish (PSS).
• Connection options – PEX and copper (see drop down options)

Tap kits include a battery pack or mains PSU, solenoid valves and associated connecting leads. Standard pressure suitable for 1-6bar. Low pressure available (please enquire) suitable for 0-1 bar.

Dart Valley Systems (DVS) Manufacturer Warranty - Spouts and Taps are guaranteed for 2 years from purchase against defective material and assembly. The automatic tap kits are guaranteed for 2 years from purchase against defective material and assembly. Solenoid valves are guaranteed for 12 months, subject to water condition, however, it is expected that the valve internals will operate efficiently for many years.

Product codes:

• AT03-021 - Brushed SS with Pex Tails DVS A45 Aquarius Doc M Sensor Tap
• AT03-022 - Brushed SS with Copper Tails DVS A45 Aquarius Doc M Sensor Tap
• AT03-023 - Polished SS with Pex Tails DVS A45 Aquarius Doc M Sensor Tap
• AT03-024 - Polished SS with Copper Tails DVS A45 Aquarius Doc M Sensor Tap

Power Kit for Standard Water Pressure:

• AT00-001 - DVS Single station battery kit standard pressure - 1-6 BAR brass valve
• AT00-002 - DVS Single station mains kit standard pressure - 1-6 BAR brass valve
• AT00-003 - DVS Two station mains kit standard pressure -1 - 6 BAR brass valve
• AT00-004 - Three station mains kit standard pressure -1 - 10 BAR brass valve

Power Kit for Low Water Pressure:

• AT00-005 - Single station battery kit low pressure - 0.5 - 1 BAR brass valve
• AT00-006 - DVS Single station mains kit low pressure - 0.5 - 1 BAR brass valve
• AT00-007 - Two station mains kit low pressure - 0.5 - 1 BAR brass valve
• AT00-008 - DVS Three station mains kit low pressure - 0.5 - 1 BAR brass valve
