Healthcare Hospital Sink IPS Duct Module

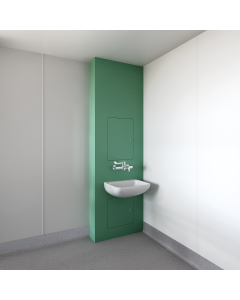

Made to measure clinical IPS duct panels and metal frame. This hospital sink module measures 1700mm wide x 2400mm high x 200mm deep. Available as either a boxed-out unit with two return ends, one return end for installation in the corner of a room or no end panels for installation between 2 walls.
All modules are produced to HTM64 specification. Panels are manufactured as standard from impact-resistant, sanitised, antibacterial compact-grade laminate for optimum hygiene. This allows appropriate cleaning chemicals and water to be used without affecting the life of the material.
30 days free credit with
Buy Now, Pay Later, options at checkout
Made to measure clinical IPS duct panels and metal frame. Hospital sink module dimensions 1700mm wide x 2400mm high x 200mm deep. Available as either a boxed-out unit with two return ends, one return end for installation in the corner of a room or no end panels for installation between 2 walls.
All modules are produced to HTM64 specification. Panels are manufactured as standard from impact-resistant, sanitised, antibacterial compact grade laminate for optimum hygiene, allowing appropriate cleaning chemicals and water to be used without affecting the life of the material.
IPS Module includes:
- IPS Panel and metal frameset
- Hinged and lockable access panel
- S5987 (ST A) Doon sink, single bowl left-hand drainer 120 x 60cm, no tapholes, no overflow
- S8270 (TB H1) Markwik ½" bib taps
- B1686 Nimbus 21 concealed bib tap wall mounted self-centralising installation pair
- B1682 Nimbus 21 bib tap extension 1/2" x 75mm pair
- S8760 Waste 1½" un-slotted strainer waste, 50mm long, 75mm dia. brass
- S8925 (TRR2/P) Trap 1½" plastic resealing bottle with 75mm seal, multi-purpose outlet
Infection control:
- sanitised antibacterial solid grade laminate panels
- Abuse resistant
- Impervious to water
- Resistant to suitable cleaning chemicals
- Close fitting panels to minimise edge surfaces
Construction:
- Steel wall and floor fixing channels
- Sanitised antibacterial SGL panels
- Pivoting and lockable access panels
- Post formed SGL vertical panelling
- Suitable for heavy use and wet environments
