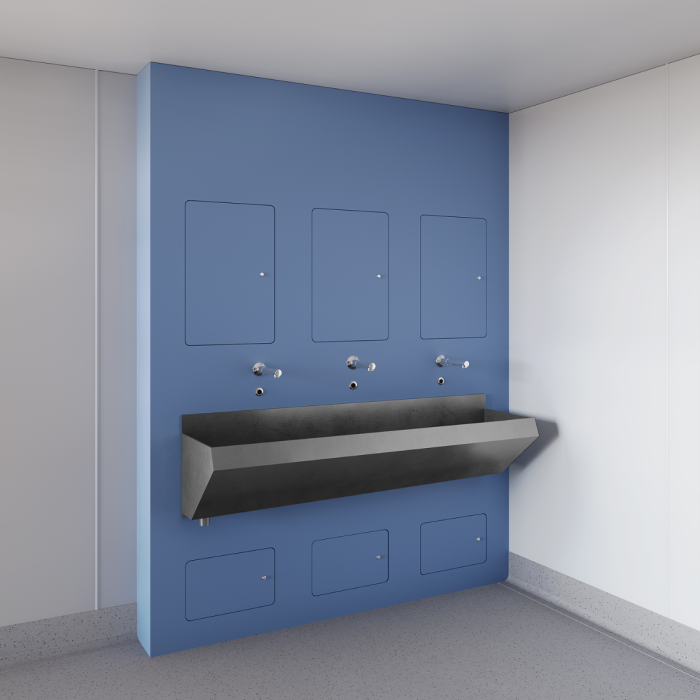

Healthcare Clinical Surgeon Scrub Up Duct Module

This neat pre-plumbed Surgeon Scrub-up Duct Module is ideal for use within a healthcare and clinical setting. It is made to measure and is offered between walls (no return ends), with one end closed or as a boxed-out unit with two return ends.

At the heart of each fully adjustable module is a self-supporting 16 gauge galvanised steel frame, which can be securely fixed to the floor, walls, and ceiling.

IPS Pre-plumbed Clinical Surgeon Scrub Up Duct Module (2 tap station) includes:

• IPS Panel and metal frame set
• Hinged and lockable access panel
• S2873 (SU H) Firth 160cm scrub-up trough, left-hand outlet strainer waste, trap cover and hangers
• S8925 (TRR2/P) Trap 1½" plastic resealing bottle with 75mm seal, multi-purpose outlet
• AT02-012 Aquarius WM straight tap spout – copper tails – (x2)
• AT00-003 Two station mains kit
• Isolating valve
• Y-strainer
• TMV

Infection control:

• Sanitised antibacterial solid grade laminate panels
• Abuse resistant
• Impervious to water
• Resistant to suitable cleaning chemicals
• Close fitting panels to minimise edge surfaces

Construction:

• Steel wall and floor fixing channels
• Sanitised antibacterial SGL panels
• Pivoting and lockable access panels
• Post formed SGL vertical panelling
• Suitable for heavy use and wet environments

Sanitaryware and Brassware: Units can be manufactured in our factory as an Integrated Plumbing System (IPS), delivered to site with sanitary ware pre-fixed and installed from the factory.  Alternatively, sanitary ware and brassware Compliant with HTM 64 can be ordered separately from the Commercial Washrooms site.

Dimensions: 2000mm wide x 2600mm high x 200mm deep
