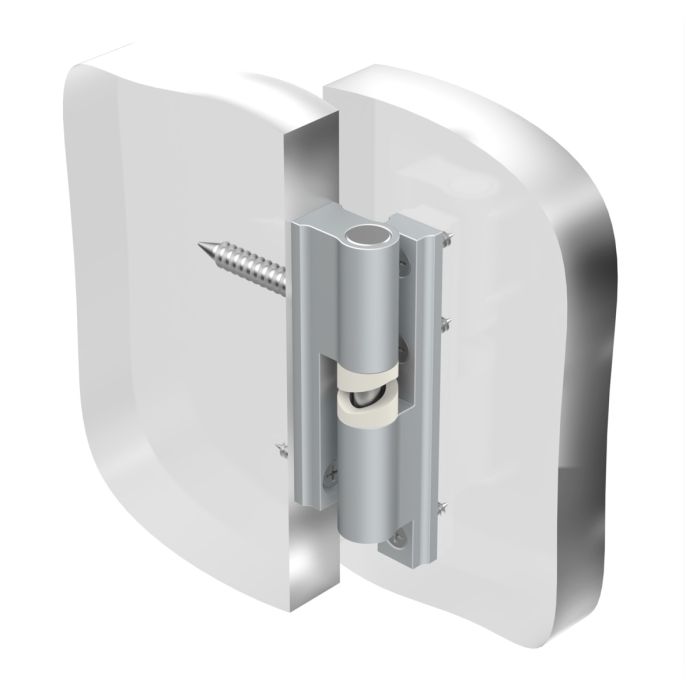

Rise and Fall Toilet Cubicle Hinge (Pair)
This Pair of Rise and Fall Toilet Cubicle Hinges are straight-forward and cost-effective, and suit panel thicknesses of 17-21mm.
30 days free credit with
Buy Now, Pay Later, options at checkout
This Pair of Rise and Fall Toilet Cubicle Hinges are straight-forward and cost-effective, and suit panel thicknesses of 17-21mm.
The hinge is fitted to the edge of the door by a 6mm wood/metal dowel; this requires the edge of the door to be pre-drilled prior to fitting. The fascia component is simply screwed into the back of the fascia using three standard wood screws.
The hinge incorporates a pair of adjustable nylon cams which can be set to allow the door to fall fully open, fully closed or two positions in-between.
A hidden screw is fitted to each hinge to prevent the doors from being lifted off. Where immediate access is required these screws may be discarded so the door can be easily lifted off.
Silver Anodised Aluminium as standard, but is also available in a variety of powder coated colours at an increased cost and longer lead time. For additional colours, please contact us.
The hinges are packed in pairs (i.e. one pair per standard size door 700 x 1800 x 17mm).
Where heavy or outward opening doors are fitted, we would advise the fitting of three or more hinges to the door.
Product code: H01A
Was previously called 0H01.
