Healthcare Twyford Clinical Wash Basin IPS Duct Module SGL

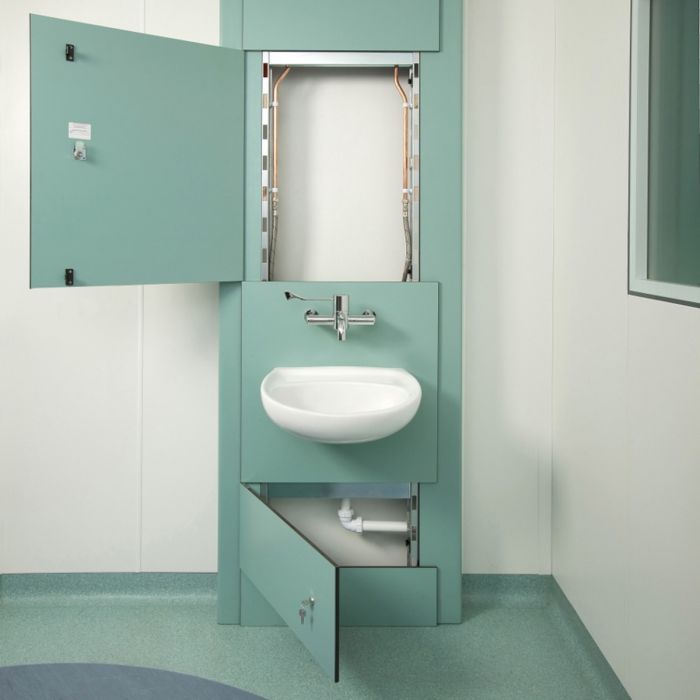

This neat pre-plumbed wash hand basin duct set module is made to measure and is ideal for use in any commercial washroom setting. It is particularly popular in healthcare environments. It is available as either a boxed-out unit or with a choice of return end panels.
All modules are produced to HTM64 specification. Panels are manufactured as standard from impact-resistant, sanitised, antibacterial compact-grade laminate for optimum hygiene. This allows appropriate cleaning chemicals and water to be used without affecting the life of the material.
30 days free credit with
Buy Now, Pay Later, options at checkout
This neat pre-plumbed wash hand basin duct set module is ideal for use within any commercial washroom setting, particularly popular within healthcare environments. Available as either a boxed-out unit or with a choice of return end panels.
At the heart of each fully adjustable module is a self-supporting 16 gauge galvanised metal frame which can be securely fixed to the floor, walls and ceiling.
All modules are produced to HTM64 specification. Panels are made to measure from impact-resistant, sanitised, antibacterial compact grade laminate for optimum hygiene, allowing appropriate cleaning chemicals and water to be used without affecting the life of the material.
Panels are factory-fixed with concealed metal clips attached to the metal subframe. Access panels can be easily removed from the unit by kehu ‘lift off’ or ‘pull off’ clips. The unit comes complete with a 1no-hinged access panel.
Choose from our range of standard laminate colours (Polyrey washroom collection). Colours outside this range may incur costs.
Sanitary ware and Brassware: Units are manufactured in the factory as an Integrated Plumbing System (IPS), delivered to site with Twyford sanitary ware pre-fixed and installed from the factory. Alternatively, sanitary ware and brassware Compliant with HTM 64 can be ordered separately from the Commercial Washrooms site.
Twyford Clinical Sanitaryware:
- SA4280WH - Sola Spectrum Washbasin 500x410 No Tap, Back Outlet, HTM-LB H M
- SF1132 - Sola thermostatic WM surgeons mixer lever tap flow straightener compliant to HTM 04-01 removable spout version suitable for autoclaving self-draining spout with smooth internals with Wall mounted, detachable spout
- SR1314XX - Sola Spectrum Basin Fitting including Plastic Grid Waste
- WF8438 - Resealing Bottle Trap 1.25" P and S
Infection control:
- Sanitised antibacterial solid grade laminate panels
- Abuse resistant
- Impervious to water
- Resistant to suitable cleaning chemicals
- Close fitting panels to minimise edge surfaces
Construction:
- metal wall and floor fixing channels
- Sanitized antibacterial SGL panels
- Pivoting and lockable access panels
- Post formed SGL vertical panelling
- Suitable for heavy use and wet environments
Dimensions: Up to 1000mm wide x 3000mm high x 300mm deep.
