A superior toilet cubicle hinge designed to be fixed to a glass washroom cubicle partition, to suit 10mm glass panels and 13mm overlapping systems.
Finished in a Grade 16 Satin Stainless Steel, this hinge can be adjusted to fall open or closed and comes with all fixings to attach to the partition.
![Two Inc](https://www.commercialwashroomsltd.co.uk/static/version1725271788/frontend/Medialounge/commercialwashrooms/en_GB/images/two-inc.png)
30 days free credit with
Buy Now, Pay Later, options at checkout
![main product photo](https://www.commercialwashroomsltd.co.uk/media/catalog/product/cache/a339618b11419d5af9b68b7f8a902a13/t/1/t113smr-cubicle_hinge_for_glass_cubicles.jpg)

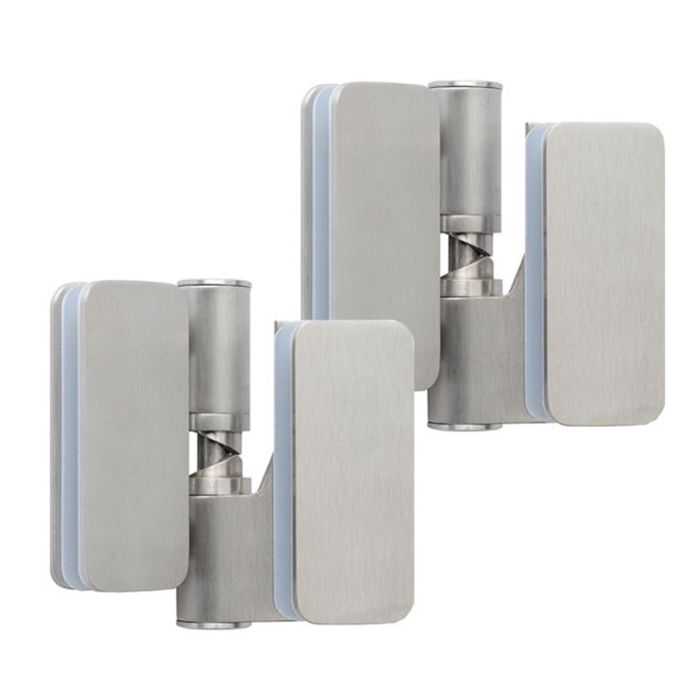

A superior toilet cubicle hinge designed to be fixed to a glass washroom cubicle partition, to suit 10mm glass panels and 13mm overlapping systems.
Finished in a Grade 16 Satin Stainless Steel, this hinge can be adjusted to fall open or closed and comes with all fixings to attach to the partition.
This hinge is available for either a left or a right handed door. Please see information sheet for further details.
The hinges are supplied as fall closed. To adjust them to fall open, the fitter needs to remove the small grub screw in the bottom of the hinge with the Allen key supplied, then rotate the bottom nylon cam in the body of the hinge round to the next hole and tighten the grub screw.
Features:
- Suitable for a thickness of 12-13mm
- Available as either left or right handed.
- Finished in satin stainless steel.
- Comes supplied with all fixings.
