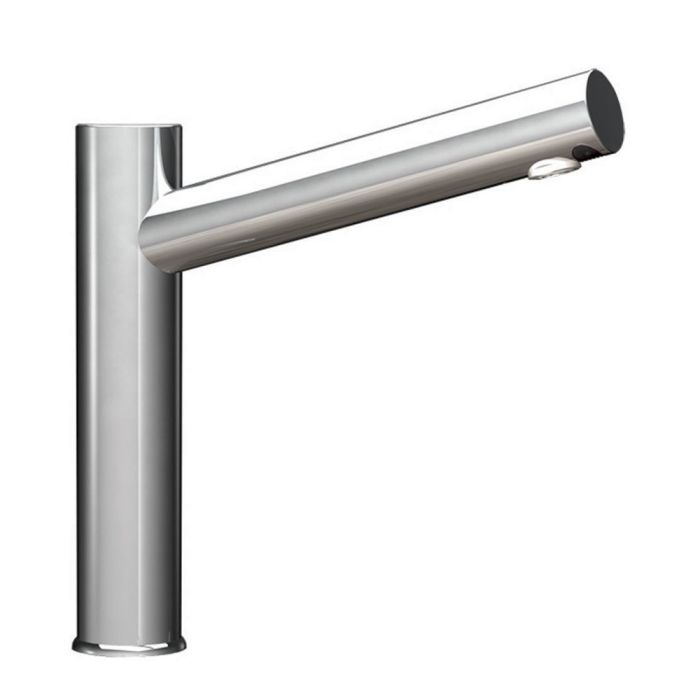

DVS Aquarius Tall Pillar Chrome Sensor Tap

The Dart Valley Systems (DVS) Tall Pillar Sensor Tap is a common tap choice for use with Lay On and high sided types of wash hand basins. The sensor is integral to the tap body. It’s reliability and sturdy build make it an ideal option in all commercial washroom environments. Available in a polished chrome finish.

The tap has a clearance height of 230mm and a reach of 220mm, and as such is perfect for high sided basins, or sinks where more space is needed for washing. Comes with pex tails (flexi) for easy connection to water supplies.

The Aquarius Tall Pillar Tap has a simple design which ensures the ultimate in hygiene and aesthetics for the most discerning of clients. The robust design and build quality also make it ideal for most commercial washrooms with particular appeal in offices, hotels and general commercial applications where high sided basins are used.

When a user puts their hands under the tap the infra-red detector activates the solenoid valve, causing it to open. The valve remains open while the user’s hands are under the tap allowing them to wash their hands thoroughly. Once the user removes their hands the sensor activates the solenoid valve to close and the water flow is stopped.

Power options include both battery and mains electrical supply. Mains power kits can be purchased for 1 station, 2 station or 3 station scenarios (taps must be adjacent to each other). Battery kits are only available to suit 1 tap.

Also, choose from standard OR low-pressure arrangement. Standard pressure set up assumes 1-6 bar; low-pressure kits available to suit 0-1 bar.

Tall Pillar taps can be pre-set prior to delivery or adjusted on-site using a handheld controller (additional cost). All taps feature a chlorination option for new installations or where flushing is required and a built-in purge facility, ideal for areas where water condition is critical. A number of helpful reporting features can also be accessed via the hand-held controller (sold separately), including the number of tap operations and purges which have occurred.

All electronics are housed within the body of the tap. A separate solenoid valve controls the flow of water and is connected to the tap using secure IP65 rated connection cables. The power supply or battery pack is also connected in the same way.

All DVS sensor taps have an anti-vandal mode ensuring that if someone deliberately blocks the sensor, the tap will only run for one minute. The sensor will then lock off until the sensor has been cleared and the tap then resets, preventing water wastage and the risk of overflow or flood.

Features:

• 2 Year Manufacturer’s Warranty *
• WRAS Approved Product
• Fully Programmable with adjustable run-on time and anti-Vandal Lockout Time
• Extensively developed and tested to achieve the current high levels of reliability
• Uses the “optimum” amount of water
• Hygienic - Helps avoid cross infection
• Easy to use - Ideal for disabled, elderly or young children
• Battery or mains powered
• Easy to install and maintain
• Available in brushed or polished stainless steel
• Connection options – PEX flexi connectors

Tap kits include a battery pack or mains PSU, solenoid valves and associated connecting leads. Standard pressure suitable for 1-6bar. Low pressure available (please enquire) suitable for 0-1 bar.

Dart Valley Systems (DVS) Manufacturer Warranty - Spouts and Taps are guaranteed for 2 years from purchase against defective material and assembly. The automatic tap kits are guaranteed for 2 years from purchase against defective material and assembly. Solenoid valves are guaranteed for 12 months, subject to water condition, however, it is expected that the valve internals will operate efficiently for many years.

Product codes:

• AT03-061 - DVS Aquarius Tall Pillar Sensor Tap No Touch

Power Kit for Standard Water Pressure:

• AT00-001 - DVS Single station battery kit standard pressure - 1-6 BAR brass valve
• AT00-002 - DVS Single station mains kit standard pressure - 1-6 BAR brass valve
• AT00-003 - DVS Two station mains kit standard pressure -1 - 6 BAR brass valve
• AT00-004 - Three station mains kit standard pressure -1 - 10 BAR brass valve

Power Kit for Low Water Pressure:

• AT00-005 - Single station battery kit low pressure - 0.5 - 1 BAR brass valve
• AT00-006 - DVS Single station mains kit low pressure - 0.5 - 1 BAR brass valve
• AT00-007 - Two station mains kit low pressure - 0.5 - 1 BAR brass valve
• AT00-008 - DVS Three station mains kit low pressure - 0.5 - 1 BAR brass valve
