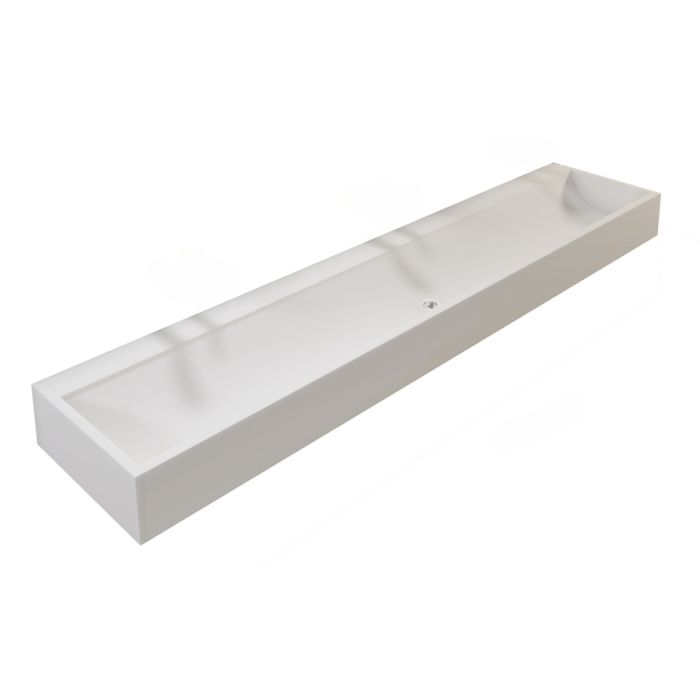

Curve Washtrough

The Commercial Washrooms range of Solid Surface Corian washtroughs will achieve a stunning and sophisticated washroom finish. They are durable and hygienic and offer the unique ability to renew the surface from damage by polishing out any scratches or wear and tear without removal of the unit.

The inner bowl shape of this washtrough will ensure that all water drains back into the centre waste point.

Our Curve washtrough is designed for either deck or wall-mounted taps. Water supplies and wastes are concealed beneath the washtrough.

The Solid Surface material is manufactured to a seamless appearance, made from 12mm thick sheets of white Corian acrylic composite material mounted onto a moisture-resistant MDF substrate. The composite sheets are manufactured by Corian, a similar material supplied by LG Hi-Mac, Staron and others.

Washtroughs can be supplied with the required wall fixing bracket. We recommend the following quantities:

• Up to 600mm : 2 brackets
• 601mm – 1200mm : 2 brackets
• 1201mm - 1800mm : 3 brackets
• 1801mm – 2400mm : 4 brackets

Please note the wall fixing bracket is sold as a single, please adjust the quantity to meet your measurements.

To complete the look, and for increased support, we recommend this washtrough is installed with underframes/access panels (VUUF) and/or IPS duct panel sets on which to mount the wash trough. These can be manufactured in Solid Grade Laminate (SGL) and help to conceal pipework while providing easy access for maintenance.

The price displayed is for the wash trough only; additional costs apply for the purchase of taps, underframes and IPS duct panel sets.

Curve wash Trough Size Guide

Standard lengths are as follows:

• 600mm (One Person)
• 1200mm (Two Person)
• 1800mm (Three Person)
• 2400mm (Four Person)
• 3000mm (Five Person)

Non-standard bespoke washtrough sizes can be priced and manufactured on request, please call the Commercial Washrooms sales team for further information. The price shown is for the Corian colour Glacier White, alternative colours are priced upon request.

Troughs are supplied un-drilled for taps. It is the purchaser’s responsibility to drill tap holes on-site to suit the tap style and size intended. Drawings provided prior to purchase may show taps however this is for illustration purposes only.

All Commercial Washrooms manufactured solid surface wash troughs are supplied with wall support brackets where selected, but an underframe is recommended if ordering a trough at 2400mm or more, as the wall will unlikely support the weight of the trough on its own.

Please allow more time for delivery during peak periods such as school holidays, if in doubt or delivery is of the essence contact us prior to purchasing.

Troughs and underframes can be made entirely to custom lengths, depths and heights, contact us for a bespoke quote.

Product codes:

• SSTCURVE-600 - Up to 600mm Curve Solid Surface Wash Trough
• SSTCURVE-1200 - 601-1200mm Curve Solid Surface Wash Trough
• SSTCURVE-1800 - 1201-1800mm Curve Solid Surface Wash Trough
• SSTCURVE-2400 - 1801-2400mm Curve Solid Surface Wash Trough
• SSTCURVE-3000 - 2401-3000mm Curve Solid Surface Wash Trough
• WMBWTBCUS - Wall Mounting Bracket (Single) for Wash Trough
• VUUF-1000 - SGL 0 - 1000mm Vanity Unit Underframe and Access Panels
• VUUF-1500 - SGL 1001 - 1500mm Vanity Unit Underframe and Access Panels
• VUUF-2000 - SGL 1501 - 2000mm Vanity Unit Underframe and Access Panels
• VUUF-2500 - SGL 2001 - 2500mm Vanity Unit Underframe and Access Panels
• VUUF-3000 - SGL 2501 - 3000mm Vanity Unit Underframe & Access Panels
• 1RPSGL - Solid Grade Laminate (SGL) Underframe End Panel
•
