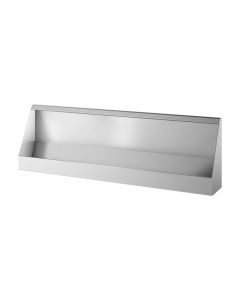

KWC DVS Centinel Wall Hung Stainless Steel Urinal Trough (Exposed Cistern)
KWC DVS stainless steel urinal trough available in 4 lengths to suit different numbers of users. Manufactured from 1.2mm thick grade austenitic stainless steel polished to a satin polish finish.
Each urinal is supplied complete with: 50mm waste; Sparge pipes; Interconnecting pipework; Plastic cistern and downpipe. The waste outlet is positioned centrally in the length of the urinal. The urinal trough is supplied with exposed sparge pipes.
30 days free credit with
Buy Now, Pay Later, options at checkout
KWC DVS stainless steel urinal trough available in 4 lengths to suit different numbers of users. Manufactured from 1.2mm thick grade austenitic stainless steel polished to a satin polish finish.
Each urinal is supplied complete with:
- 50mm waste
- Sparge pipes
- Interconnecting pipework
- Plastic cistern and downpipe.
The waste outlet is positioned centrally in the length of the urinal. The urinal trough is supplied with exposed sparge pipes.
All urinals are screw fixed to the wall through fixing holes in the top flange together with separate wall mounted brackets which support the base of the unit. CE Certified. The recommended height for fixing the cisterns is 750-950mm, from the underside of the cistern to the top return of the urinal.
The following lengths of trough are available (please specify when ordering):
- CEN120E - 1200mm Long
- CEN150E - 1500mm Long
- CEN180E - 1800mm Long
- CEN240E - 2400mm Long
Stainless Steel urinal cisterns (4.5L, 9L and 13.5L) are available to purchase as a substitute for plastic cisterns included in the urinal trough packs. These are ideal for areas particularly prone to vandalism where a plastic cistern is insufficient. Please contact us for a quote.
-
