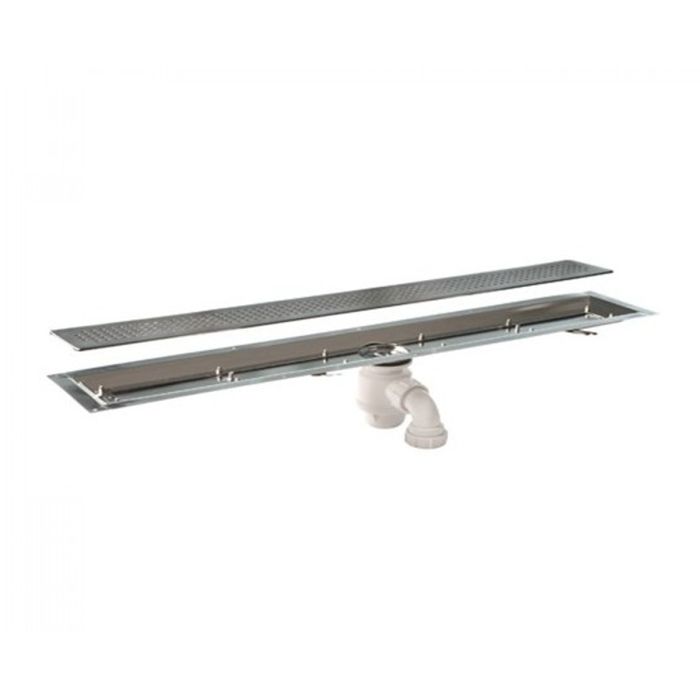

This shower channel system is designed for tiled flooring and is ideal for commercial use as an alternative to using a shower tray in order to save space and to make washrooms more accessible. The perfect way to create a commercial wetroom.
The channel system sits flush with the floor giving a seamless finish to the washrooms with a 30mm flange for tiling over, creating a neat watertight finish. Available in the following lengths: 700mm, 800mm, 900mm, 1000mm and 1200mm. Please select when ordering.
![main product photo](https://www.commercialwashroomsltd.co.uk/media/catalog/product/cache/a339618b11419d5af9b68b7f8a902a13/1/0/105784-aco_shower_channel_system_for_flexible_sheet_floor_22.jpg)
This shower channel system is designed for tiled flooring and is ideal for commercial use as an alternative to using a shower tray in order to save space and to make washrooms more accessible. The perfect way to create a commercial wetroom.
The channel system sits flush with the floor giving a seamless finish to the washrooms with a 30mm flange for tiling over, creating a neat watertight finish.
Available in the following lengths: 700mm, 800mm, 900mm, 1000mm and 1200mm. Please select when ordering.
Various stainless steel grating designs are available for the channels which are listed below:
- Wave - Stylish and modern stainless steel grating
- Quadrato - Traditional stainless steel grating
- Intercept - Textured stainless steel grating for enhanced slip resistance
- Tile - Tile inserts supplied by the customer for a more seamless finish
Key Features
- Durable, slim profile fully welded stainless steel
- High Flow rate, 50mm water seal 0.4 l/s trapped outlet with 40mm Multi-fit waste connection
- Horizontal or vertical outlet configuration
Product codes:
Shower Channel Length:
- 04435 - 700mm Long Aco Shower Channel System for Tiled Floor (40mm Outlet)
- 04436 - 800mm Long Aco Shower Channel System for Tiled Floor (40mm Outlet)
- 04460 - 900mm Long Aco Shower Channel System for Tiled Floor (40mm Outlet)
- 04441 - 1000mm Long Aco Shower Channel System for Tiled Floor (40mm Outlet)
- 04448 - 1200mm Long Aco Shower Channel System for Tiled Floor (40mm Outlet)
Wave grating:
- 04449 - 700mm Wave Grating for Aco Shower Channel for Tiled Channel System
- 04467 - 800mm Wave Grating for Aco Shower Channel for Tiled Channel System
- 04461 - 900mm Wave Grating for Aco Shower Channel for Tiled Channel System
- 04442 - 1000mm Wave Grating for Aco Shower Channel for Tiled Channel System
- 04450 - 1200mm Wave Grating for Aco Shower Channel for Tiled Channel System
Quadrato grating:
- 04437 - 700mm Quadrato Grating for Aco Shower Channel for Tiled Channel System
- 04438 - 800mm Quadrato Grating for Aco Shower Channel for Tiled Channel System
- 04471 - 900mm Quadrato Grating for Aco Shower Channel for Tiled Channel System
- 04445 - 1000mm Quadrato Grating for Aco Shower Channel for Tiled Channel System
- 04455 - 1200mm Quadrato Grating for Aco Shower Channel for Tiled Channel System
Intercept grating:
- 105636 - 700mm Intercept Grating for Aco Shower Channel for Tiled Channel System
- 105637 - 800mm Intercept Grating for Aco Shower Channel for Tiled Channel System
- 105638 - 900mm Intercept Grating for Aco Shower Channel for Tiled Channel System
- 105639 - 1000mm Intercept Grating for Aco Shower Channel for Tiled Channel System
- 105640 - 1200mm Intercept Grating for Aco Shower Channel for Tiled Channel System
Tile grating:
- 105630 - 700mm Tile Grating for Aco Shower Channel for Tiled Channel System
- 105631 - 800mm Tile Grating for Aco Shower Channel for Tiled Channel System
- 105632 - 900mm Tile Grating for Aco Shower Channel for Tiled Channel System
- 105633 - 1000mm Tile Grating for Aco Shower Channel for Tiled Channel System
- 105634 - 1200mm Tile Grating for Aco Shower Channel for Tiled Channel System
Optional Foul Air Trap:
- 91095 - Aco Shower Foul Air Trap for Channel System (50mm Water Seal)
